| Brand Name : | Aotong |
| Model Number : | AT-B250 |
| Certification : | CE,ISO |
| Price : | USD25000-30000 |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 50SET/MONTH |
| Delivery Time : | 20-30DAYS |
Features
1.A wide range of packaging, Suit for packing various powder of different state, nature.Suit for different types bags.
2.Easy operate, adopt PLC control, man-machine operate system, intuitive and convenient operation.
3.It takes about 10 minutes to change the filling material, convenient and quick.
4.High degree of automation. Unmanned in the whole process of the weighing and packaging. Automatic
alarm if any machine failures.
5.Perfect prevention system, intelligent detection whether the bag is open, whether open completes. Don’t
feeding, sealing when the bag is closed, don’t waste the bags and filling materials. Saving the cost.
6.The packaging parts of the machine are made of stainless steel to ensure the hygiene and safety of the
filling material, up to the GMP standard.
7.Use imported plastic bearings on the important components, without refueling, to reduce the pollution of
filling materials;
Technical Parameters

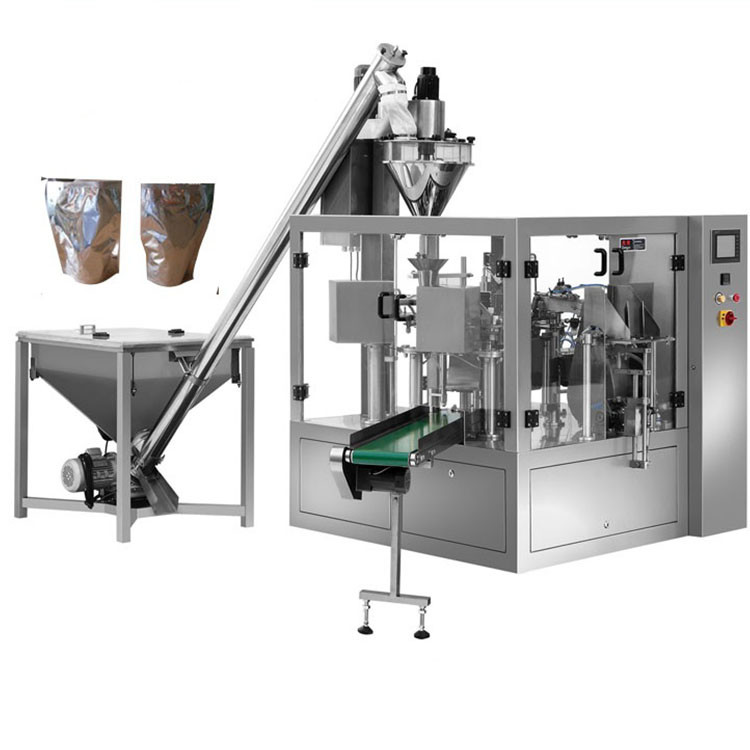

| Name | Pre-made pouch powder packing machine |
| Model | CXG-L |
| Measurement | Screw weigher,Liner weigher |
| Operate interface | Touch screen |
| Bag type | Stand-up bag,Zipper bag,Four side seal bag,Three side seal bag,Paper bag,Reticule,M type bag etc. |
| Bag specification | W:160~300mm L:100~400mm(Coding requirement length: Min140mm) |
| Work flow | 1.Pouch supply 2.Date print 3.Open the bag 4.Feeding 5.Heat seal 6.Output |
| Filling range | 5~2500g |
| Packing speed | 10~40bags/min |
| Packing accuracy | The tolerance is≤±1% |
| Weight | 2000kg |
| Dimension(L*W*H) | 1645mm*1645mm*1640mm |
MainEquipment
|
|
